10pcs Melzi of 3d printer- Free Shipping

Click to enlarge
10pcs Melzi of 3d printer- Free Shipping
  • Shipping Weight: 500lbs
  • 1000 Units in Stock

$600.00

Add to Cart:

10pcs Melzi of 3d printer Free Shipping



 Product Description

  1. • Technical Specifications
  2. • Colour: Green
  3. • Material: PCB
  4. • Size: 210.4*48*7mm
  5. • N.W.: 158g
  6. • Remark: 12V work voltage
  7. • Can control MK1 heated bed( Power:96W)
  8. • Main control IC: ATMEGA1284P, compatible Sanguinololu.
  9. • integration of 4 pcs A4988 stepper motor drive
  10. • FT232RL USB connector
  11. • SD card printing function
  12. • Package: Sealed Anti static electricity bag + desiccant

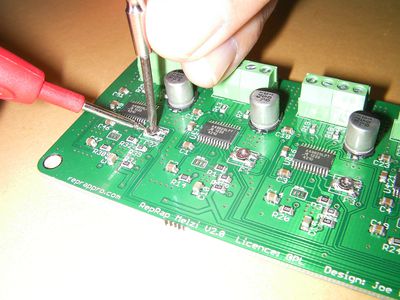

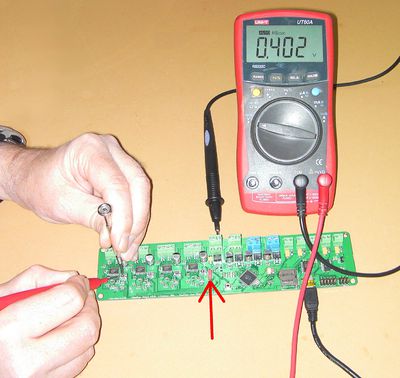

Because of the sense resistor in the
stepper driver circuit (which is 0.05 ohms rather than 0.1 ohms, which the
Melzi V2 reference design uses), this effectively means that the stepper
driver is trying to supply the stepper motors with 2.5A when the tirm go to the limit! This is beyond the
limit of the stepper driver (it will overheat and mis-step) and beyond the
current limit of most NEMA 17 Stepper motors, which can get very hot. So that the best choice is buy the custom made NEMA 17 Stepper motors for 3D printer from us.

A4988-datasheet

Download Link: http://www.rp3d.com.cn/upload/file/1422414625.rar
